Hospital furnitures

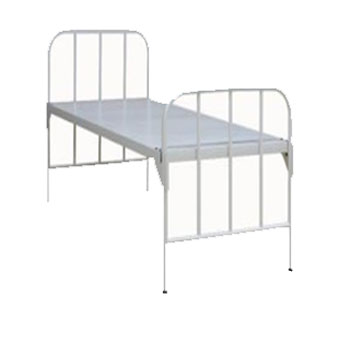

Hospital Plain Cot

Hospital Plain Cot. The legs are fabricated from 32mm round tubing with 19mm cross supports and is mounted on Rubber bushes. The top frame is 2x1 rectangular tubing 16 gauge with 32mm square cross pipes on either side. The Cot is covered with 18 gauges MS Sheet. The Cot is provided with MS bows on the head and foot side with Powder coated.

ICU Cot

The bottom frame is fabricated from 40mm square tubing 16 gauges and mounted on 4 nos. 125mm castors two nos. provided with brakes. The top frame is 2 x 1 16 gauge rectangular tubing and the beds from 1” round tubing 16 gauges covered with 18 gauges MS Sheet. The cot can be Raised from 22” to 32” by simple screw rod mechanism, the back, seat and Trendlenburg also by simple screw rod mechanism. Provided with imported ABS panel for head and foot side with collapsible side railing Powder coated. 4 inches mattresses and pillow to be provided.

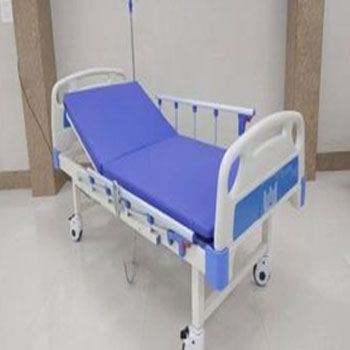

Fowler Cot.

Heavy –Head & Leg side ABS Model with Collapsible side railing – The legs of the cot are fabricated from 32mm square tubing 16 gauge with 19mm cross pipes mounted on 4 nos. 125 mm castor two nos. provided with brakes. The top frame in 2 x 1 rectangular tubing 16 gauge and the beds are fabricated from 1” round tubing covered with 18 gauge MS Sheet. The back and the seat section can be raised by simple screw rod mechanism and the foot by rack method. Bows are 32mm round MS tubing 16 gauge with laminated panel powder coated. 4 inches mattresses and pillow to be provided.

Semi Fowler Cot.

The legs of the cot are fabricated from 32mm square tubing 16 gauge with 19mm cross pipes mounted on 4 nos. 125 mm castor two nos. provided with brakes. The top frame in 2 x 1 rectangular tubing 16 gauge and the beds are fabricated from 1” round tubing covered with 18 gauge MS Sheet. The back and the seat section can be raised by simple screw rod mechanism and the foot by rack method. Bows are 32mm round MS tubing 16 gauge with laminated panel powder coated. 4 inches mattresses and pillow to be provided.

Fowlers Cot - Heavy

Fowlers Cot - Heavy –Head & Leg side ABS Model with Collapsible side railing -including Mattresses The legs of the cot are fabricated from 32mm square tubing 16 gauge with 19mm cross pipes mounted on 4 nos. 125 mm castor two nos. provided with brakes. The top frame in 2 x 1 rectangular tubing 16 gauge and the beds are fabricated from 1” round tubing covered with 18 gauge MS Sheet. The back and the seat section can be raised by simple screw rod mechanism and the foot by rack method. Bows are 32mm round MS tubing 16 gauge with laminated panel powder coated.

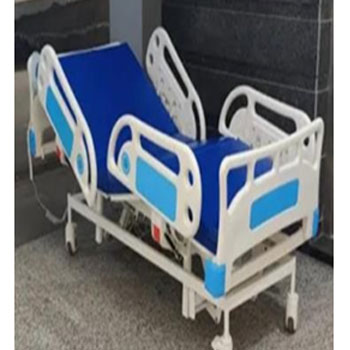

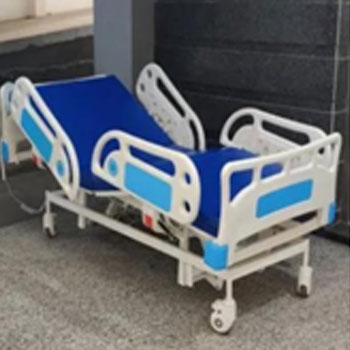

ICU 5 Functioning Motorized Remote Cot

ICU 5 Functioning Motorized Remote Cot with electric CPR – Heavy with Mattresses Size (L× W×H): 2150 mm & times; 965 mm & times; 485 to 710 mm (height adjustable) approximately. 2. Backrest, Leg rest, Height, Trendelenburg and Reverse Trendelenburg adjustment with electric motors. 3. The motorized bed comes with 4 actuators, 1 control box & 1 handset. 4. Hydraulically pressed four section bed boards in 18 SWG CRCA sheet. 5. Head & Leg Bows set made of Polypropylene (set of 2). 6. Tuck away type made of Polypropylene side railings with angle indicator (set of 4). 7. Provision for IV Pole, fitted with drainage bag holder. 8. 360 rotatable castor 4 nos with braking in all (125mm). 9.Epoxy powder coating. 10. Electric CPR

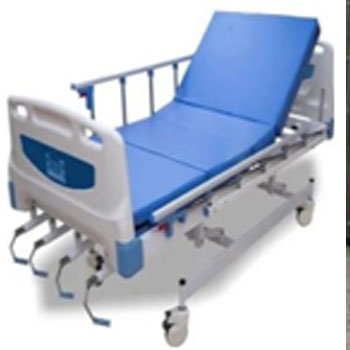

ICU Manual Cot – Heavy

ICU Manual Cot – Heavy (5 Functioning) Head & Leg side ABS Model, Collapsible side railing with wheel with Mattresses The bottom frame is fabricated from 40mm square tubing 16 gauges and mounted on 4 nos. 125mm castors two nos. provided with brakes. The top frame is 2 x 1 16 gauge rectangular tubing and the beds from 1” round tubing 16 gauges covered with 18 gauges MS Sheet. The cot can be raised from 22” to 32” by simple screw rod mechanism, the back, seat and Trendlenburg also by simple screw rod mechanism. Provided with imported ABS panel for head and foot side with collapsible side railing powder coated

Bed side locker - Deluxe Model

Drawer With Cupboard & Wheel - Top Stainless steel 304grade Size 14 x 14 x 30 Complete fabricated on 18G x 20G CR sheet. Drawer with one cupboard & middle one plain shelf with handle. Ground adjustable wheel. Pure Polyester powder coated 80-100micron

Bed side locker -Heavy (Ordinary Model)

Box fabricated from 20 gauge sheet and legs 25mm square tubing mounted on rubber bushes with SS top size 14x14x32 bottom MS Shelf powder coated.

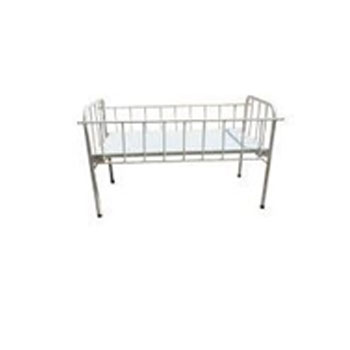

Pediatric Cot Heavy – with Mattresses

Completely fabricated from 32mm square tubing for the legs and frame with side rails and head and foot bows fabricated from 1” round with 19mm fillers powder coated.

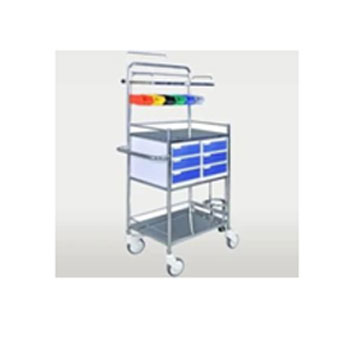

Crash Cart –The crash cart is completely fabricated from 32 mm square tubing 16 gauge and is mounted on four 125 mm castors two no’s provided with brakes. The unit is provided with two Stainless steel shelves and two no’s Alcon boxes with three drawers each for storage. It is also provided with cylinder trolley attachment and saline pole. The unit is provided with 6 no’s small bins Powder coated

Instrument Trolley - Heavy

Instrument Trolley - Heavy (Complete Stainless Steel) Size: 24” x 18” Completely fabricated from 1” square Stainless Steel tube 16 gauges provided with 2 Stainless Steel tray 20 gauge 202 grade mounted on 4” castor.

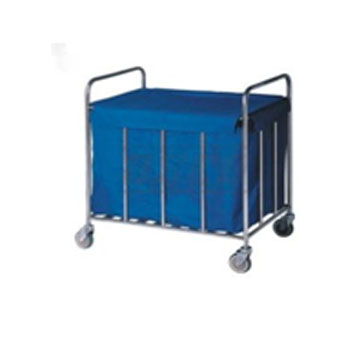

Waste Linen Trolley

Stainless steel round linen trolley with linen cloth and wheel

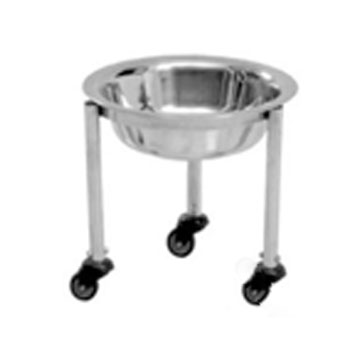

Kick Bowl

Stainless steel kick basin bowl with 2” wheel

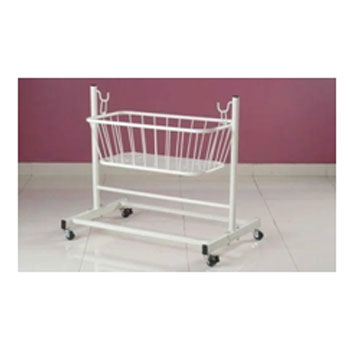

Baby Cradle

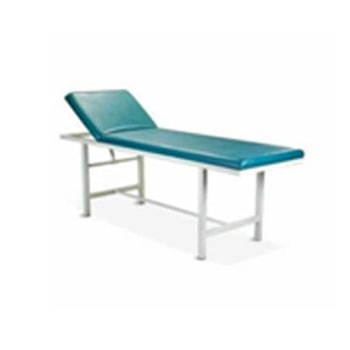

Examination Couch - with Mattresses

2 sections completely fabricated from 32mm square tubing with 2” foam mattress each powder coated.

Instrument Trolley - Heavy

Instrument Trolley - Heavy (Complete Stainless Steel) Size: 36” x 18” Completely fabricated from 1” square Stainless Steel tube 16 gauges provided with 2 Stainless Steel tray 20 gauge 202 grades mounted on 4” castor.

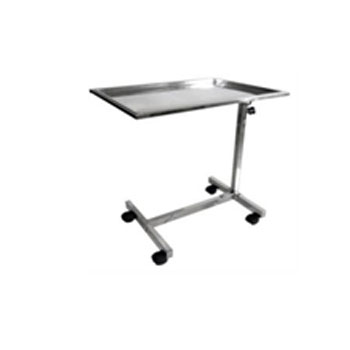

Mayo’s Trolley - Heavy

Mayo’s Trolley - Heavy (Complete Stainless Steel 304 Grade) Fully Stainless Steel 304 Grade. The base in fabricated from 32mm round tubing 16 gauge mounted on 2” castors and the tray is 18 gauge Stainless Steel 304 grade sheet size 16 x 18 provided with Stainless Steel frame for tray

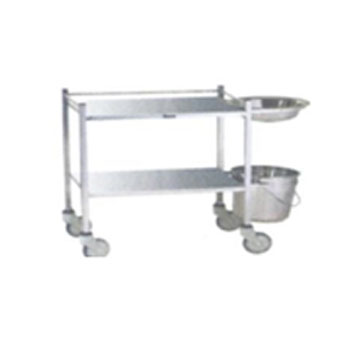

Dressing Trolley - Heavy

Dressing Trolley - Heavy (Complete Stainless Steel 304 Grade) Size: 24” x 18” Completely fabricated from 1” square Stainless Steel tube 16 gauges provided with 2 Stainless Steel tray 20 gauge 202 grade mounted on 4” castor with SS bucket and bowl and tray

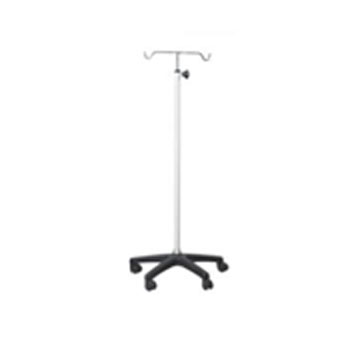

Saline Stand

Fiber base 2 x 1 rectangular tubing 16 gauges and upright pipe 32mm round tubing 16 gauge with Stainless Steel I.V pole provided with 2” wheels powder coated.

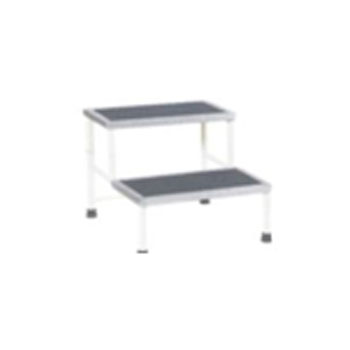

Foot Stool - Double Step

Completely fabricated from 25mm square tubing 16 gauge with MS Sheet Powder coated

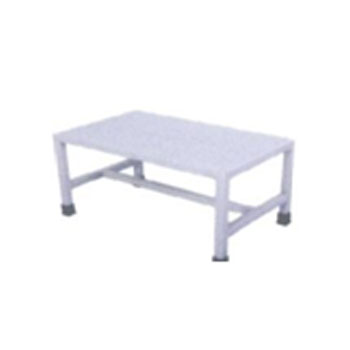

Foot Stool - Single Step

Completely fabricated from 25mm square tubing 16 gauge with MS Sheet Powder coated

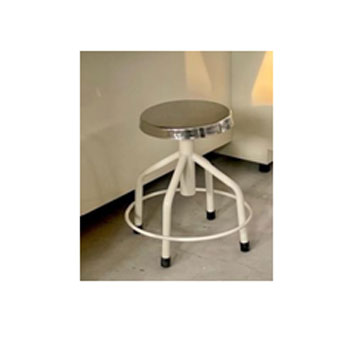

Patient Revolving Stool -Heavy

With Cushion completely fabricated from 40mm square tubing with 1” screw rod for lift mounted on 2” wheels powder coated

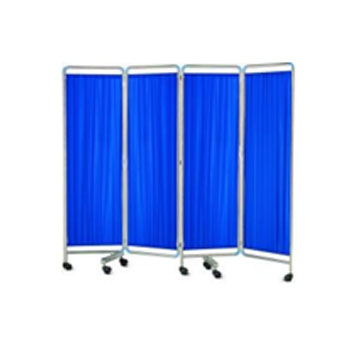

Bedside Screen - 3 Foldable

Complete fabricated on 16 gauge frame and High quality fabrics with wheel.

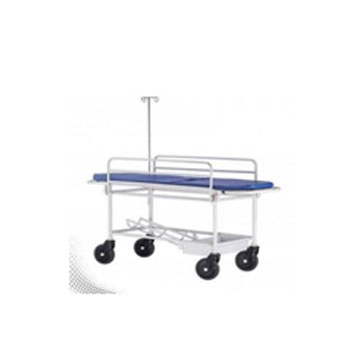

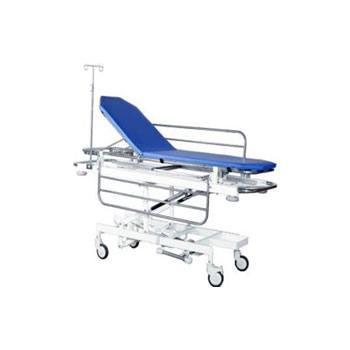

Patient Shifting Trolley.

Stretcher Trolley with Cylinder holder with side railing with Straps & Mattress & I.V Rod Fabricated on complete 304 Grade 16G stainless steel materials with mattress, side railing with wheel and cylinder stand to be provided.

Stretcher Trolley

Stretcher Trolley – Completely Stainless Steel 304 grade with Mattresses Completely fabricated from 40 mm Stainless steel 16G 304 Grade square tubing mounted on 4 nos. 125 mm castors wheel Fully Stainless steel Top

Examination couch with cabinet and drawers and Mattress

Examination couch with cabinet and drawers and Mattress Two sections the entire table is fabricated from 32 mm square tubing 16 gauges and is mounted on rubber bushes. The top frame is fabricated from 32 mm square tubing and is two sections. The head section can be raised by simple bush mechanism.2” foam mattress with Rexene cover is provided. The examination couch is provided with a box which has three drawers in the top and one bottom compartment with shelves for stacking. Completely powder coated and compartment with mattress.
