Laboratory furnitures

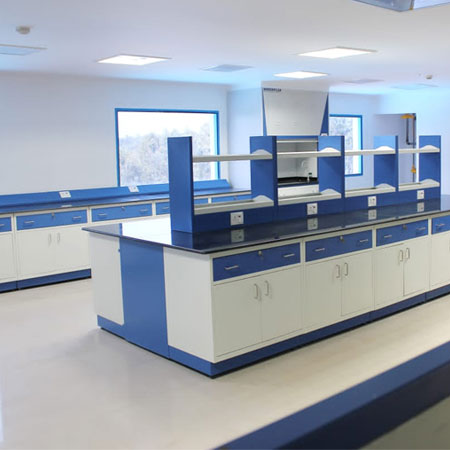

Chemistry Island Tables.

1800 L x 1500 W x 900 H (for 4 Student) Table Top – 18mm (±) Black Polished Granite Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Table Support Tube Frame: 40 x 40 GI Sheet Storage Cupboards – 2 No of Cupboards – Drawer and Double door Cupboards Inner 1 No of Horizontal partition to be provided. Regent Racks 1 No 900 L x 300 W x 600 H – Two Tier with 2 No’s 16amps Electricals Socket and Switches to be provided Sink and 3 Way Water Tap – 1 set to be provided Sink – Size 560 L x 355 W x 240 H Water Tap – Standard – (Premier Brand) Three Way Tap Brass with Epoxy Polyester Powder Coated.

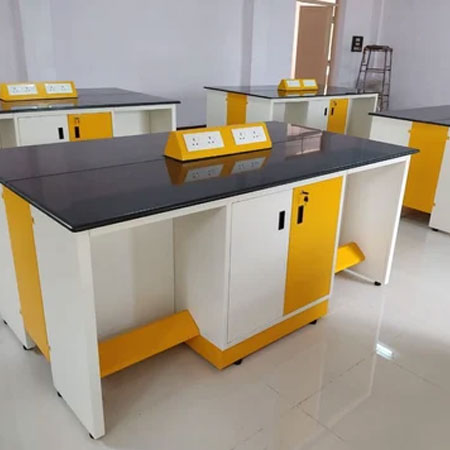

Physics Lab Tables.

1800 L x 1500 W x 900 H (for 4 Student) Table Top – 18mm (±) Black Polished Granite Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Table Support Tube Frame: 40 x 40 GI Sheet Storage Cupboards – 2 No of Cupboards – Drawer and Double door Cupboards Inner 1 No of Horizontal partition to be provided. Electricals Socket and Switches to be provided

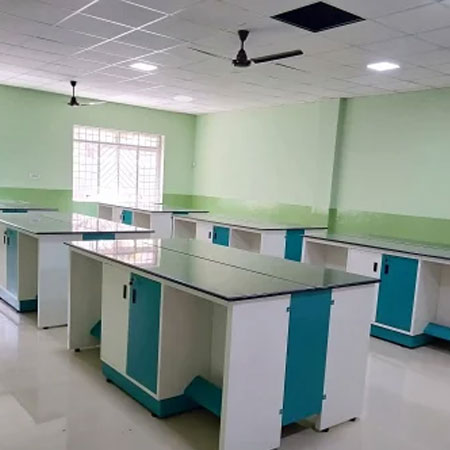

Biology Lab Tables.

1800 L x 1500 W x 900 H (for 4 Student) Table Top – 18mm (±) Black Polished Granite Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Table Support Tube Frame: 40 x 40 GI Sheet Storage Cupboards – 2 No of Cupboards – Drawer and Double door Cupboards Inner 1 No of Horizontal partition to be provided.

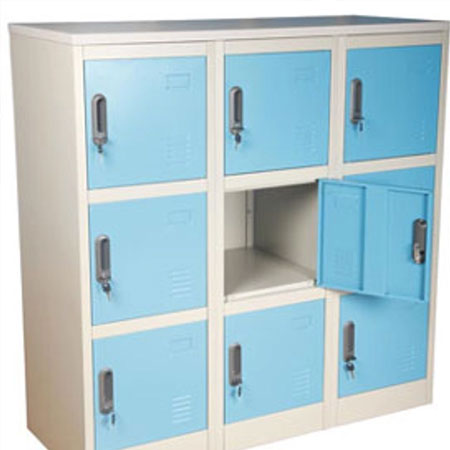

Student Bag Lockers.

900 L x 450 W x 1800 H (for 12 Student) Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Twelve Numbers individual Locker with lock and key provided.

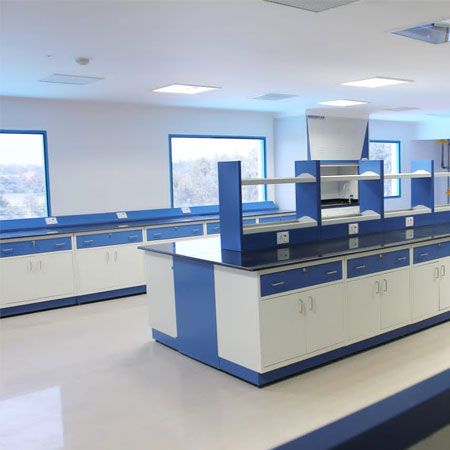

Instrumentation Lab Tables.

1800 L x 1500 W x 900 H (for 4 Student) Table Top – 18mm (±) Black Polished Granite Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Table Support Tube Frame: 40 x 40 GI Sheet Storage Cupboards – 2 No of Cupboards – Drawer and Double door Cupboards Inner 1 No of Horizontal partition to be provided. If required electrical socket to be provided.

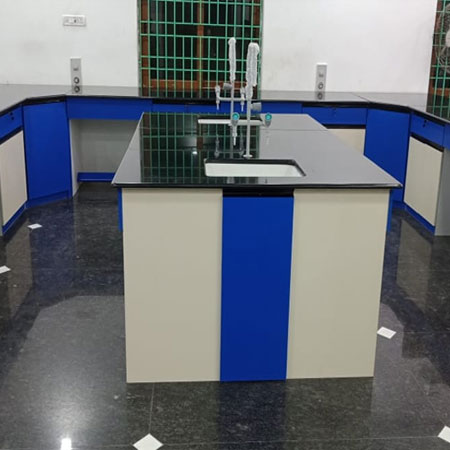

U Shape Lab Tables

1800 + 2000 + 1500 L x 750 W x 900 H Table Top – 18mm (±) Black Polished Granite Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Table Support Tube Frame: 40 x 40 GI Sheet Storage Cupboards – Alternative Cupboards to be provided with Drawer and Double door Cupboards 1 no Inner Horizontal partition to be provided. If required electrical socket to be provided.

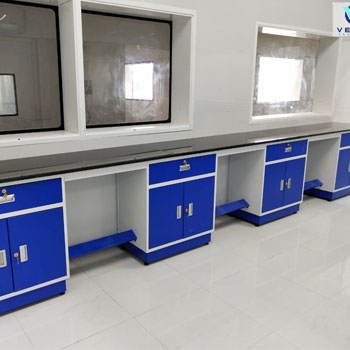

Wall Tables

2400 L x 750 W x 900 H Table Top – 18mm (±) Black Polished Granite Materials of Construction – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Table Support Tube Frame: 40 x 40 GI Sheet Storage Cupboards – Alternative Cupboards to be provided with Drawer and Double door Cupboards 1 no Inner Horizontal partition to be provided. If required electrical socket to be provided.

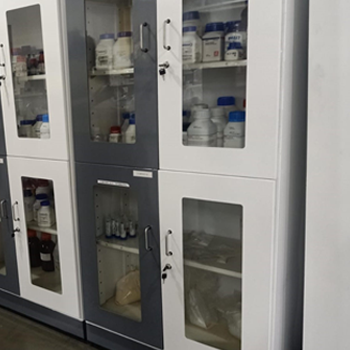

Chemical Storage Cupboards.

900 L x 450 W x 1800 H Made by 20 gauge GI Sheet with Epoxy Polyester Powder Coated. It will have front glass door and 3 no’s horizontal Partition with locking system will be provided. 100micron

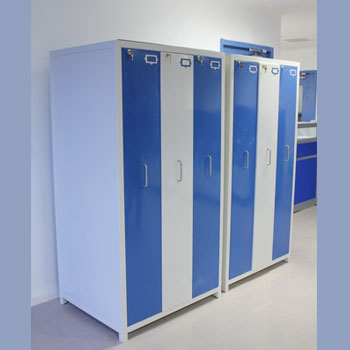

Vertical Chemical Storage Cupboards.

Constructed by 20-gauge GI sheet with Epoxy Polyester Powder Coated has 6 horizontal and 3 vertical partitions with fume exhaust system .

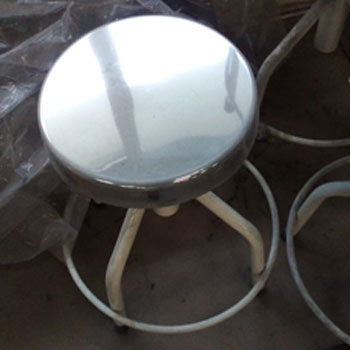

Lab Stools.

MOC: GI 20 gauge with Epoxy Polyester Powder Coated Top: Cushion 3 inch height Hydraulic Height adjustable with foot rest. Different type of Top materials available

• SS Top.
• Wooden Top.
• Cushion Top.
• MS Top

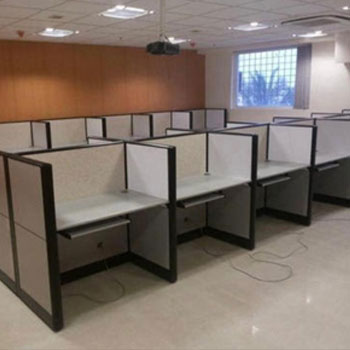

Computer Table

7200 L x 600 W x 750 + 450 H Table Top – 18mm (±) BWP plywood with 1mm thickness mica will be pasted top and bottom of ply wood with sealed by 2mm edge tape to be pasted. Table Support - 16mm BWP plywood with 1mm thickness mica will be pasted top and bottom of ply wood with sealed by 2mm edge tape to be pasted. Amities –

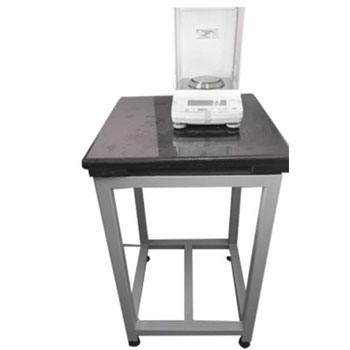

Anti-Vibrate Table

750 L x 600 W x 750 H Tabletop – 18mm (±) Black Polished Granite. Table Support – 20-gauge GI Sheet with Epoxy Polyester Powder Coated. Vibration Isolation Effective for isolation of precision equipment from floor-generated vibrations by environmental means. High Accuracy Used for application where instrument usage and accuracy of reading are affected by vibrations, like weight balances, galvanometer and more. Adjustable Feet The surface of a balance table must be adjustable to ensure accuracy. Adjustable feet can be used to adjust the level of the surface. Easy to Clean Balance tables is easy to clean which reduces the risk of contamination. Separate Service Dropper To prevent rusting, a service dropper constructed from 0.8 mm MS in a hollow section is used as a divider between the body and worktop

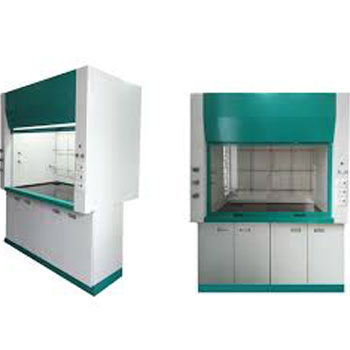

Fume Hood

To be added -Fume Cupboard is of constant supply air hood with auxiliary bye-pass provision. Three sides of the hood are permanently closed and the front side provided with sliding door. Inside the working chamber, there will be a sturdy baffle provided at about 200mm above the work-table to uniformly direct the fumes / odour / smoke directly in to the hood’s exhaust system. Suction will be done at three different levels suitable for mild to heavy fumes. Door Framed Sliding Door Toughened Glass/polycarbonate Worktable height 800 mm from the floor level Air Balancing 100% Exhaust with air bye-pass entry Noise Level 70 dB “A” Scale if blower mounted Inside the Hood Suction Velocity 80 to 100 FPM when the door half-closed Under-bench Horizontal partition and lockable doors Working Top 18mm thick Black Granite Sink and Water tap PP sink with way tap Illumination LED Tube Light-2No Power socket 5/15amps -2 No 3pin socket Gas Nozzle 1no Front door height 600 /750/900 mm height from work table Blower Outer Mounted Type Power Supply Three Phase, 220 V, 50 Hz Ducting pipe - Rigid ducting PP lining 200mm Dia 10 Feet with 4mm thickness pipe to be provided. Epoxy polyester powder coated with Inner PP Lining all working areas
